Helical Gear Reducer

R Series Foot Mounted Helical Gear Reducer

R series helical gear reducer adopts an integral casting box, which has good structural rigidity and quickly improves the shaft’s strength and the bearings’ life. As its structure is compact, it saves a lot of space. The installation methods of the R series helical gear reducer include foot installation and flange installation, foot installation type is more widely used. Its average efficiency is 96% for the double-stage type, 94% for the three-stage type, and 85% for the R/R combination type.

As one of the helical gear reducer manufacturers, suppliers, and exporters of mechanical products, We offer helical gear reducer and many other products. Please get in touch with us for details.

Mail:[email protected]

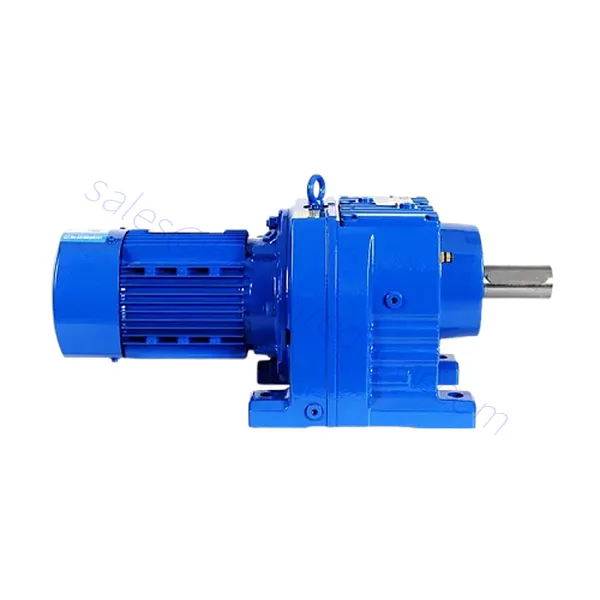

R Series Foot Mounted Helical Gear Reducer

R series helical gear reducer adopts an integral casting box, which has good structural rigidity and quickly improves the shaft’s strength and the bearings’ life. As its structure is compact, it saves a lot of space. The installation methods of the R series helical gear reducer include foot installation and flange installation, foot installation type is more widely used. Its average efficiency is 96% for the double-stage type, 94% for the three-stage type, and 85% for the R/R combination type.

R series gear reducers are widely used in the light industry, food, beer and beverage, chemical industry, escalator, automatic storage equipment, building materials machinery, iron and steel metallurgy, environmental protection, power plants, coal, mining, papermaking, wood-based panels, automobiles, ports ( Airports, terminals), tobacco machinery and other fields.

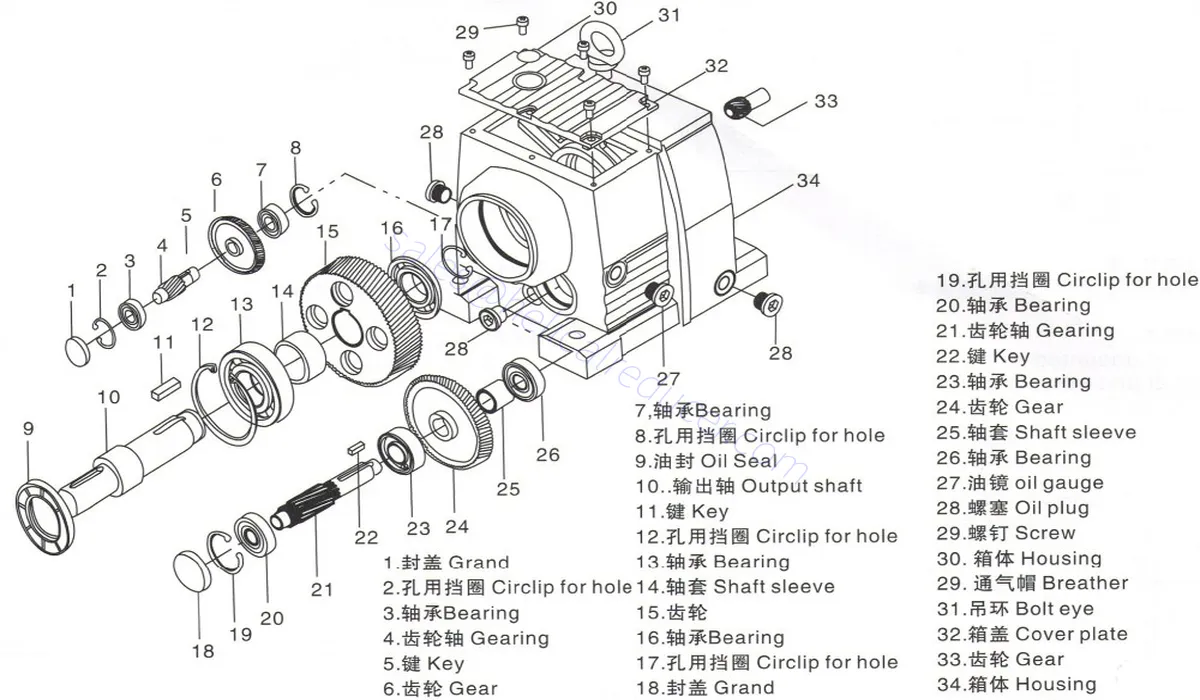

R Series Structure Drawing:

Products Specifications:

Product name: R series helical gear reducer
Model: R17/27/37/47/57/67/77/87/97/107/137/147/167
Mounting ways: Foot-mounted and flange mounted
Input ways: Motor input, AM (IEC) flange input, and shaft input
Output way: Solid shaft output
Efficiency: 94%-98%(depends on the transmission stage)
Housing material: HT250 high-strength cast iron
Gear material: 20CrMnTi
Surface hardness of gears: HRC58-62
Input/Output shaft: 40Cr steel
Heat treatment: Carburizing and quenching
Bearing: C&U or other brands
Oil seal: NAK or other brands
Lubricating oil: Gear oil
Packing: plywood case

Product Details:

1. R series helical gear hard surface reducer has low vibration, low noise, and high energy saving;
2. R series reducer uses using international advanced transmission machinery model;
3, R series reducer uses high-quality forged steel material, a steel cast iron box, and the gear surface is subjected to high-frequency heat treatment;
4. R series helical gear hard surface reducer has low energy consumption and superior performance, and the efficiency of the R coaxial helical gear reducer is over 95%;
5. After precision machining to ensure the shaft’s parallelism and the positioning bearing’s requirements, the reducer that forms the helical gear transmission assembly is equipped with various motors combined into mechatronics, which fully guarantees the quality characteristics of the geared motor products.

Products Parameters:

Size 17 27 37 47 57 67 77 87 97 107 137 147 167
Structure R                    RF
Input power
rating (kW)
0.18-0.75 0.18-3 0.18-3 0.18-5.5 0.18-7.5 0.18-7.5 0.18-11 0.55-22 0.55-30 22-45 5.5-55 11-90 11-160
Ratio 3.83-74.84 3.37-135.09 3.33-134.82 3.83-176.88 4.39-186.88 4.29-199.81 5.21-195.24 5.36-246.54 4.49-289.74 5.06-249.16 5.15-222.60 5.00-163.31 10.24-229.71
Permissible torque(N.M) 85 130 200 300 450 600 820 1550 3000 4300 8000 13000 18000

Applications:

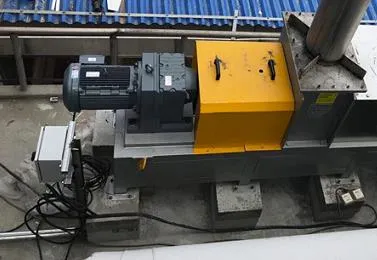

The R series helical gear reducer can modularly compose with other reducers and variator, significantly reducing drive and variation. Therefore it is applied to many industrial areas, such as Metallurgical mines, lifting transportation, petrochemical construction, textile, environmental, light electric, plastic machine, parking equipment, etc.

We Also Provide Other Series of Helical Gear Reducers:

Company Profile

Hangzhou XinLan Reducer Co., Ltd. is a professional speed reducer manufacturer and exporter in China specializing in producing and selling various gear speed reducers. Our factory is located in Hangzhou city, one of the industrial reducer belts in China. We supply products including WP worm gearbox, RV worm gearbox, R K S F series helical gear reducer, cycloidal speed reducer, JZQ cylindrical gearbox, worm gear screw jack, T series spiral bevel gearbox, motor, etc.

With the advantages of high precision, low noise, long service life, and stable performance, our products are widely used in industries like plastic, metallurgy, mining, lifting, packing, conveying, chemical, glass, construction, etc., and are praised by domestic and foreign clients from north America, Europe, Southeast Asia, South America, the Middle East.

“Quality first, sincere service, mutual development” is our business philosophy. We are committed to providing all our clients with a reliable product, competitive pricing, speedy delivery, and the highest level of customer service. We are a warm and responsible speed reducer supplier.

Other Related Products

Helical Gear Reducer Videos

FAQ

Q1: Are you trading company or manufacturer?
A: We are factory.

Q2: What kinds of gearbox can you produce for us?
A: Main products of our company: R, S, K, F series helical-tooth reducer, RV series worm gear reducer,H series parallel shaft helical gear reducer.

Q3: Can you make as per custom drawing?
A: Yes, we offer customized service for customers.

Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.

Q5: What information shall we give before placing a purchase order?
A: a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

Q6: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.

Q7: What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
