F Series Parallel Shaft Helical Gear Reducer

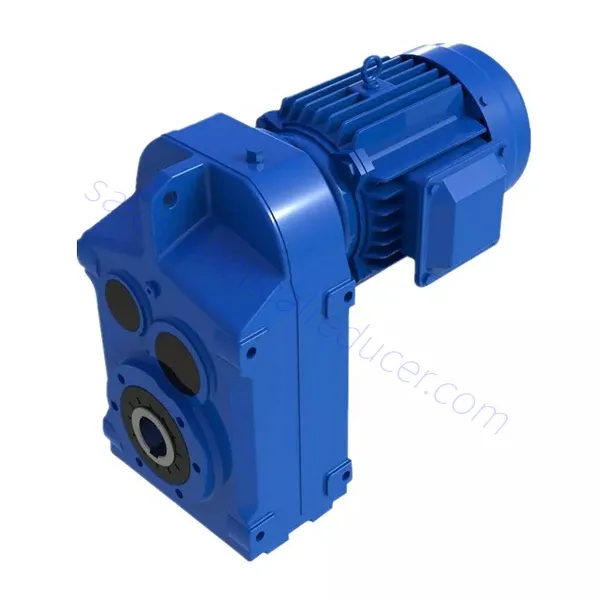

The F series helical gearbox is a parallel shaft helical gearbox; its input shaft and output shaft are parallel. F series parallel shaft helical gearbox has the advantages of a compact structure, ample transmission torque, stable operation, low noise, and long service life. The essential two-stage input and output rotate in the same direction, while the third stage rotates in the opposite direction. It can be used in combination with R series helical gearbox. The average efficiency is 96% for the primary two stages, 94% for the three stages, and 85% for the F Series and R Series combination.

As one of the helical gear reducer manufacturers, suppliers, and exporters of mechanical products, We offer helical gear reducer and many other products. Please get in touch with us for details.

Mail:[email protected]

F Series Parallel Shaft Helical Gear Reducer

The F series helical gearbox is a parallel shaft helical gearbox; its input shaft and output shaft are parallel. F series parallel shaft helical gearbox has the advantages of a compact structure, ample transmission torque, stable operation, low noise, and long service life. The essential two-stage input and output rotate in the same direction, while the third stage rotates in the opposite direction. It can be used in combination with R series helical gearbox. The average efficiency is 96% for the primary two stages, 94% for the three stages, and 85% for the F Series and R Series combination.

F Series Parallel Shaft Helical Gear Reducer Product Structure:

F Series Parallel Shaft Helical Gear Reducer Model Nomenclature:

4 Main Types of F Series Helical Gear Reducers:

foot-mounted solid shaft output F series hollow shaft output FA series
flange-mounted hollow shaft output FAF series flange-mounted solid shaft output FF series

F Series Parallel Shaft Helical Gear Reducer Specifications:

Product name: F series parallel shaft helical gearbox
Model: F37/47/57/67/77/87/97/107/127/157
Mounting ways: Foot-mounted, flange-mounted, or shaft mounted
Input ways: Motor input, AM (IEC) flange input, and shaft input
Output way: Solid shaft output, hollow shaft output, output with large flange, output with small flange
Efficiency: 96% for basic two-stage, 94% for three-stage
Housing material: HT250 high-strength cast iron
Gear material: 20CrMnTi
Surface hardness of gears: HRC58-62
Input/Output shaft: 40Cr steel
Heat treatment: Carburizing and quenching
Bearing: C&U or other brands
Oil seal: NAK or other brands
Lubricating oil: Gear oil
Packing: Plywood case

F Series Parallel Shaft Helical Gear Reducer Parameters:

Input power and permissible torque chart
Size 37 47 57 67 77 87 97 107 127 157
Structure F   FA   FF   FAF   FAZ
Input power
(kW)
0.18-3.0 0.18-3.0 0.18-5.5 0.18-5.5 0.37-11 0.75-22 1.1-30 2.2-45 7.5-90 11-200
Ralio 3.81-128.51 5.06-189.39 5.18-199.70 4.21-228.99 4.30-281.71 4.12-270.68 4.68-280.76 6.20-254.76 4.63-172.17 11.92-267.43
Permissible
torque(N.M)
200 400 600 820 1500 3000 4300 7840 12000 18000

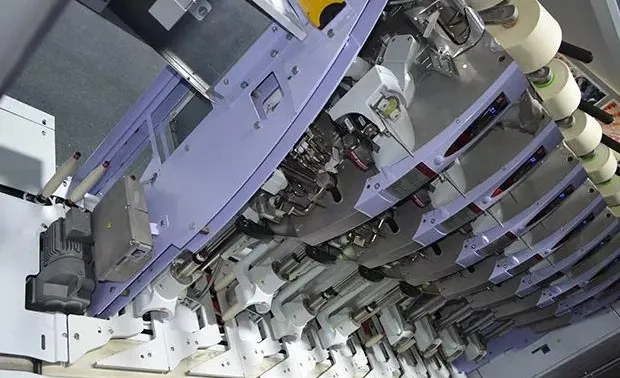

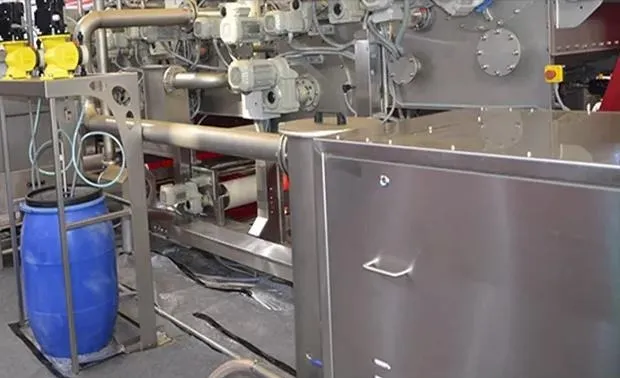

Applications of F Series Helical Gear Reducer:
